Delaunay Grid

Overview

➡️ Computes a Delaunay grid of receivers. The grid will be based on:

  • the BUILDINGS table extent (option by default)

  • OR a single Geometry “fence” (Extent filter).

✅ Two tables are returned:

  • RECEIVERS

  • TRIANGLES

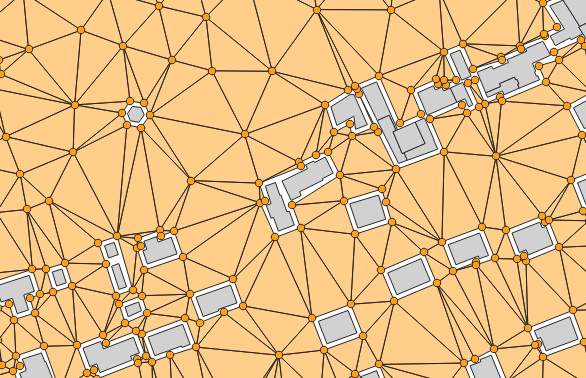

Delaunay grid output

Arguments

Mandatory inputs

sourcesTableName — Sources table name

Name of the Road table. Receivers will not be created on the specified road width

Type: String

tableBuilding — Buildings table name

Name of the Buildings table. The table must contain:

  • THE_GEOM : the 2D geometry of the building (POLYGON or MULTIPOLYGON)

Type: String

Optional inputs

buildingBuffer — Minimum distance to buildings (m)

Do not add receivers closer than this distance to buildings (in meters)

Type: Double

Default: 2

exportTrianglesGeometries — In the triangles table, export triangles geometries

If enabled, the TRIANGLES table will contain the geometry of each triangle

Type: Boolean

Default: false

fence — Extent filter

Create receivers only in the provided polygon (fence)

Type: Geometry

fenceNegativeBuffer — Negative buffer

Reduce the fence(parameter, or sound sources and buildings extent) used to generate receivers positions. You should set here the maximum propagation distance (in meters) (FLOAT)

Type: Double

Default: 0

fenceTableName — Fence table name

Use the extent of a geometry table (e.g., from a shapefile) to limit receiver area

Type: String

height — Height

Receiver height relative to the ground (in meters) (FLOAT)

Type: Double

Default: 4

isoSurfaceInBuildings — Create IsoSurfaces over buildings

If enabled, isosurfaces will be visible at the location of buildings

Type: Boolean

Default: false

maxArea — Maximum Area

Set Maximum Area (in m2) (FLOAT). No triangles larger than provided area will be created.Smaller area will create more receivers

Type: Double

Default: 2500

maxCellDist — Maximum cell size

Maximum distance used to split the domain into sub-domains (in meters) (FLOAT). In a logic of optimization of processing times, it allows to limit the number of objects (buildings, roads, …) stored in memory during the Delaunay triangulation

Type: Double

Default: 600

outputTableName — Name of output table

Name of the output table. Do not write the name of a table that contains a space

Type: String

Default: RECEIVERS

roadWidth — Road width

Set Road Width (in meters) (FLOAT). No receivers closer than road width distance will be created. You can set 0 m if you don’t want to insert roads in the output but still want to skip cells without sources using the ‘Skip cell no sources minimal distance’ parameter

Type: Double

Default: 2

skipCellNoSourcesMinimalDistance — Skip cell no sources minimal distance

If provided, a sub-domain will not be computed if no sources geometries are near x meters from the sub-domain area

Type: Double

Output

result — Created table

Name of the table containing the results of the computation. Can be used as input for another process.

Type: String
