Get Started - GUI

Below we present a simple example to help you discover NoiseModelling through its Graphical User Interface (GUI).

Step 1: Open NoiseModelling

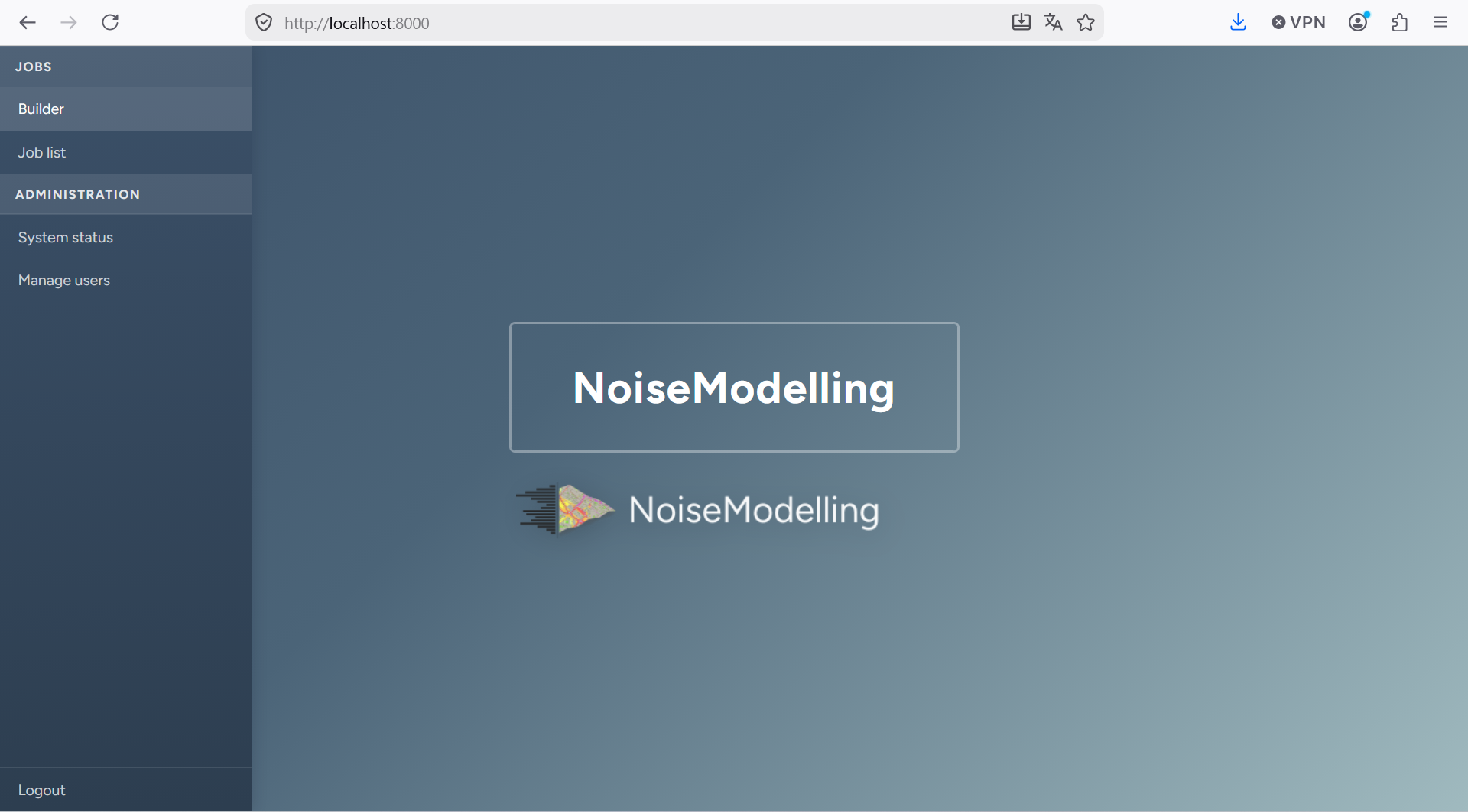

See Step 3: Start NoiseModelling GUI in the Installation guide.

Step 2: Load input files

To compute your first noise map, you need to load input geographic files into the NoiseModelling database.

In this tutorial, we have 5 layers, zoomed in on the city center of Lorient (France): Buildings, Roads, Ground type, Topography (DEM) and Receivers.

In the resources/ sub-folder of the NoiseModelling installation, you will find all the data that will be used in the tutorials.

You will import these layers into your database using the Import File Blocks.

  • Drag the Import File Block into the Builder window

  • Select the Path of the input File box and enter resources/buildings.shp in the pathFile field (on the right-side column)

  • Then click on Run Process after selecting one of the input/output boxes of your process

_images/Tutorial1_Image1bis.gif

Repeat this operation for the 4 other files:

  • resources/ground_type.shp

  • resources/receivers.shp

  • resources/ROADS2.shp

  • resources/dem.geojson

Files are uploaded to the database when the Console window displays the name of the layer.

Note

  • If you get the message Error opening database, please refer to the note in Step 2: Download NoiseModelling in the Installation guide.

  • The process is supposed to be quick (<5 sec.). In case of a timeout, try restarting NoiseModelling (see Step 3: Start NoiseModelling GUI in the Installation guide).

  • Orange Blocks are mandatory

  • Beige Blocks are optional

  • If all input Blocks are optional, you must modify at least one of these Blocks to be able to run the process

  • Blocks get a solid border when they are ready to run

  • Read the Builder page for more information

Once done, you can check whether the tables were correctly imported into the database. To do so, drag/drop and execute the Display_Database Block (in the “Database_Manager” section). You should see on the right panel the table list (and their columns if you checked the option in the Display columns of the tables Block).

_images/Tutorial1_display_db.png

Step 3: Convert road traffic into noise emission sources lines

The first step is to convert the traffic information on the roads to noise levels (vehicles per hour to an average value in dB)

Drag & Drop the Road Emission from Traffic Block into the Builder window.

Enter the name of the corresponding table in your database:

  • Roads table name: ROADS2 This table contains the road geometries with traffic data for day, evening and night

When ready, you can press Run Process.

As a result, the table LW_ROADS will be created in your database. This table contain the noise emission of your roads. The next step will run a simulation of the noise propagation to the receivers position.

Step 4: Run Calculation

To run the calculation, drag the Noise_level_from_sources Block into the Builder window.

Then, select the orange Blocks and enter the name of the corresponding table in your database:

  • Building table name: BUILDINGS

  • Source table name: LW_ROADS This table contains the road geometries with the noise emission values for day, evening and night

  • Receivers table name: RECEIVERS Locations where noise levels are evaluated

  • DEM table name: DEM Digital elevation model

  • Ground absorption table: GROUND_TYPE Nature of the ground

  • Diffraction on horizontal edges: ☑ check it (sound propagation goes over buildings)

  • Maximum source-receiver distance: set 2000 meters (do not look for sound sources further than 2 km)

  • Order of reflection: set 0 to disable it (faster but less accurate)

The beige Blocks correspond to optional parameters (e.g. DEM table name, Ground absorption table name, Diffraction on vertical edges, …).

When ready, you can press Run Process.

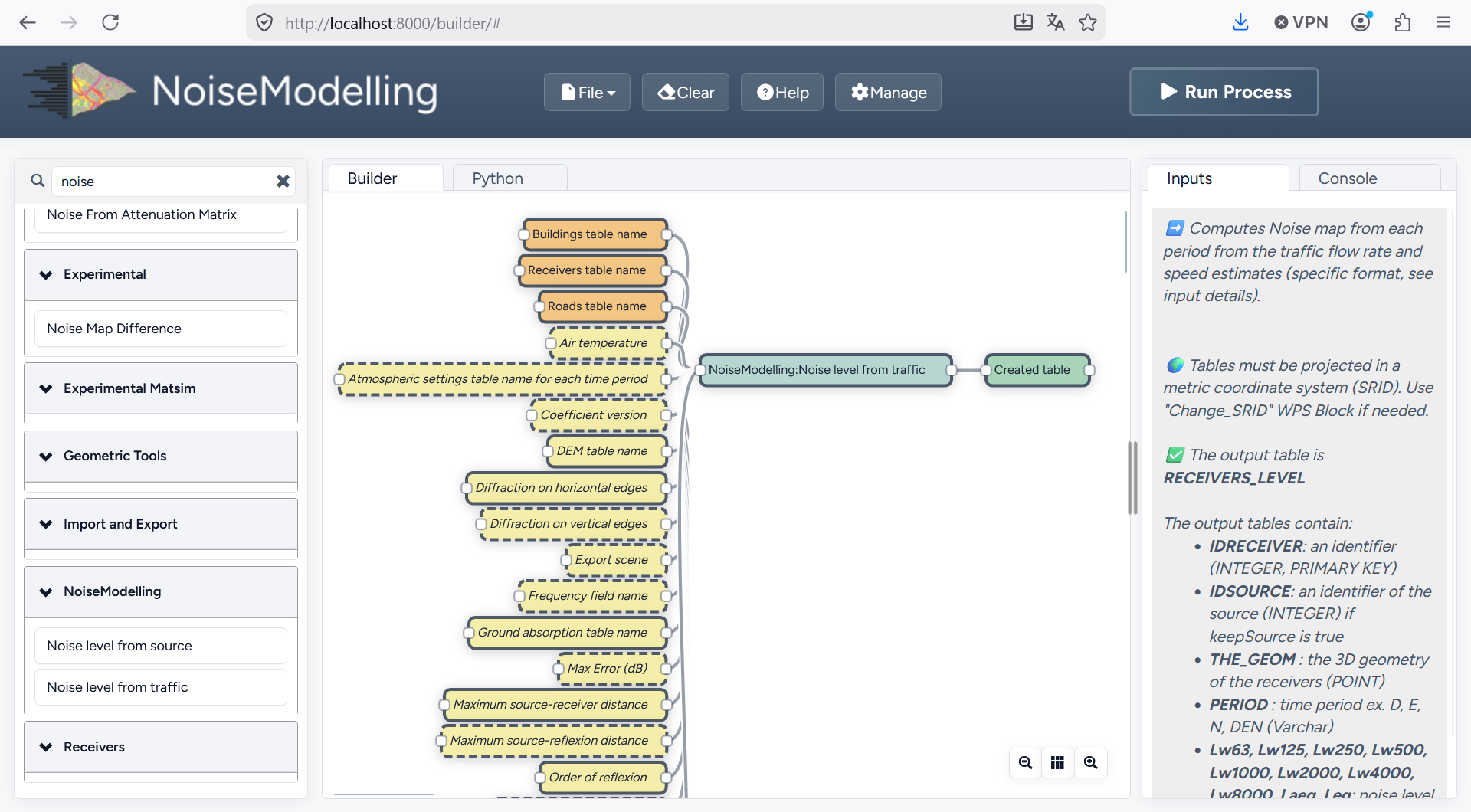

_images/Tutorial1_Image2bis.png

As a result, the table RECEIVERS_LEVEL will be created in your database. This table corresponds to the noise levels computed at receiver points. The column PERIOD corresponds to the 4 different periods of the day (D, E, N and DEN).

Step 5: Export (& see) the results

You can now export the output tables (one by one) in your preferred export format using the Export_Table Block, giving the path of the file you want to create.

Warning

Don’t forget to add the file extension (e.g. c:/home/receivers_level.geojson or c:/home/receivers_level.shp). (Read more info about file extensions here: Tutorials - FAQ)

_images/Tutorial1_Image3.PNG

For example, you can export the tables in .shp format. This format can be read with most GIS tools such as the free and open-source QGIS and SAGA software.

Note

For those who are new to GIS and want to get started with QGIS, we advise you to follow this tutorial.

To obtain the following image, use the styling options in your GIS and assign a color gradient to the LAEQ column of your exported RECEIVERS_LEVEL table.

_images/Tutorial1_Image4.PNG

To display the result for a specific period, filter the rendering by the field PERIOD in QGIS.

_images/Tutorial1_FilterMenu.png

Popup menu

_images/Tutorial1_FilterWindow.png

Filter window

Tip

Now that you have made your first noise map (congratulations!), you can try again by adding or changing optional parameters to see the differences.

Step 6: Know the possibilities

Now that you have finished this introduction tutorial, take the time to read the description of each of the Blocks available in your NoiseModelling version.

By clicking on each of the inputs or outputs, you will find a lot of information.

_images/Tutorial1_ImageLast.gif
